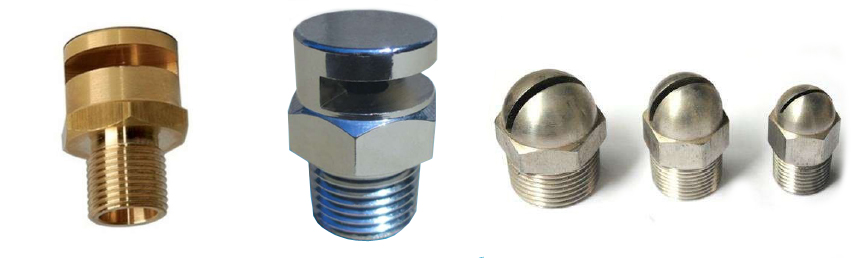

Water Curtain Nozzle

Water Curtain Nozzle distributes water in a flat curtain extending all the way to the ground.
There are two positions A- Pendant Position
Water curtain Nozzle when mounted in pendent position acts as a window spray nozzle to protect walls,
windows and other openings of the building which are affected by fire.

B---Horizontal Position
The nozzles when mounted in horizontal position with flow towards ground a flat water curtain are
produced to segregate the area which is under fire. Water Curtain Nozzles are available in Brass and
Stainless Steel construction with different flow rate.

Technical Specifications:
Maximum Working Pressure	+A170:F185sure 12 Bar (175 PSI)
Effective Working Pressure	1,4 - 3.5 Bar (50- 150 PSI
End Contraction	½" BSPT, (½" NPT OPTIONAL)
Included Water Spray Angle For Each K-Factor	140°, 120°,, 110°,, 100°,, 90°,, 80°,, & 65°
Orifice Size And mm (INCH) Metric (Us)
K-Factor	K-Factor ,K23,K30,K37,K45,K53,K72,K98,K120,K140
FINISH	Brass finish, chrome plated brass (optional) Strainer Option Available
